Thursday, June 29, 2023

CG Antenna GW-1000 APRS iGate has serious bugs

The CG Antenna GW-1000 APRS iGate gateway appliance contains faulty firmware which causes severe problems to APRS messaging worldwide.  The IS -> RF gateway feature must be disabled on all GW-1000 devices until the bug is fixed by CG Antenna, and firmware is updated on the devices.  Please contact the vendor for further instructions.

CG Antenna has asked me to publish this information so that owners of faulty iGates would more likely learn about the issue. They mentioned a special TTL level serial cable / adapter may be required for the update process.

Description of the issue

When enabled, the APRS-IS to RF (transmit) iGate transmits packets to the RF unmodified.  It does not use the correct 3rd party packet format documented in the iGate specification.  Because of this, other iGates near the faulty iGate assume all of those distant stations are active on the local RF channel, while in fact they may be on the other side of the world.

This causes the other local iGates to transmit APRS text messages destined to all of those remote stations to the local RF channel.  They're operating correctly - the unmodified packets sent by the CG-1000 seem like they would have been transmitted locally on RF.

When a lot of messages are sent, such as during the APRS Thursday event, the local RF channel will be seriously congested.  The CG Antenna GW-1000 device itself will transmit a high rate of packets, packets which are destined to remote stations and which should not be forwarded to RF.  The other iGates confused by the GW-1000 cause additional unnecessary traffic.

Because of the congestion many packets are also delayed long enough to cause the 30-second duplicate packet filtering window to be exceeded.  Packets sent to RF by the GW-1000 will be looped back to APRS-IS and redelivered everywhere in the world.  A single GW-1000 gateway in Switzerland caused delayed duplicate APRS messages to be delivered worldwide.

There are currently GW-1000 gateways operating elsewhere, but it is difficult to track them down and get them disabled.  They are hard to identify, because they send the packets to RF unmodified, without using their own callsign in the 3rd party packet frame like they should.


I have notified CG Antenna of the issue by email on January 14th, 2023, and they confirmed receiving the report on January 17th.  On February 4th they confirmed that they have to make a firmware update.  They have not published updated firmware on their downloads page yet as of June 29th, 2023. After 5 months, on June 21st, they updated their web site to note that the feature is faulty and needs to be disabled.

The bug has been present in the firmware since the launch of the product, but only became apparent when the APRS Thursday event got people to send more APRS messages, and some of those messages were originated near GW-1000 iGate.


Yes, the APRS messaging feature is brittle and it's easy to cause a bit of a mess.

If you produce and deliver a product like this, make sure it is easy for customers to upgrade the firmware without special tools. Be prepared to ship updated firmware in a timely manner if there is a serious issue.

If you wish to implement an APRS iGate, be sure to fully read the APRS iGate spec, and the details page, and fully understand it. If there's something that you don't understand, please don't do it before obtaining more information or help to understand it.

This is not the only current issue out there - there are other software causing similar issues. I'll make an update in the APRS iGate implementation tips document.

The issue was originally debugged and described in this APRS group thread.

Tuesday, March 1, 2022

Radiosonde iGates are quite a mess, and they seriously need some fixing

UPDATE: The radiosonde data feeds have almost completely been moved to and the APRS-IS is no longer involved or affected by it. Thank you!

Saturday, February 19, 2022

Baofeng & BTech APRS-K1 & iPhone problems

TL;DR: It seems like many Baofeng radio units (UV-5R, UV-82, etc) do not work with the iPhone app using the BTech APRS-K1 cable. They do not work with any iPhone app - I tried all the other APRS apps I have, and other non-APRS apps recording or playing back Audio. It seems a bit like a build quality issue as it does not depend on the radio model, but rather the individual unit. It works for some people, but for many it doesn't. Other radios I have work fine. The Android phone I have works with the UV-5R, so it must have something to do with the circuitry on that side as well.

There's a 1-capacitor fix/workaround in the end!

Many users of the iPhone app have purchased an affordable Baofeng radio, and the BTech APRS-K1 cable, and have then tried to use those for APRS. It has worked for some users, but for many it has failed miserably. This setup does not have a PTT line to key the transmitter – instead, VOX is enabled so that the radio will transmit whenever there's audio coming from the iPhone or iPad.

Users have reported that as soon as the DSP modem is enabled ("Connect TNC" is pressed in the iPhone app), the Baofeng transmitter goes on, and never goes off. When "Disconnect TNC" is pressed in the app to stop the modem, the transmitter goes off a second or two later.

Naturally, at that point, the first guess would be that the modem would be emitting some noise, which would trigger the VOX in the Baofeng. But it doesn't, if you attach earphones and listen, or if you look at the modem output with an oscilloscope.

It doesn't depend on the radio model - UV-5R or UV-82. Some units work, some don't. I had only tested the app with a Puxing PX-777, a Kenwood TH-D72 and a Kenwood TH-D74, all using the same BTech APRS-K1 cable, as they all are using the same mic/headphone connector ensemble. All of them work fine. Well, as well as a VOX-driven APRS transmitter can work, i.e. not great, as the transmitter keys up slowly and goes off very slowly due to the VOX delays.

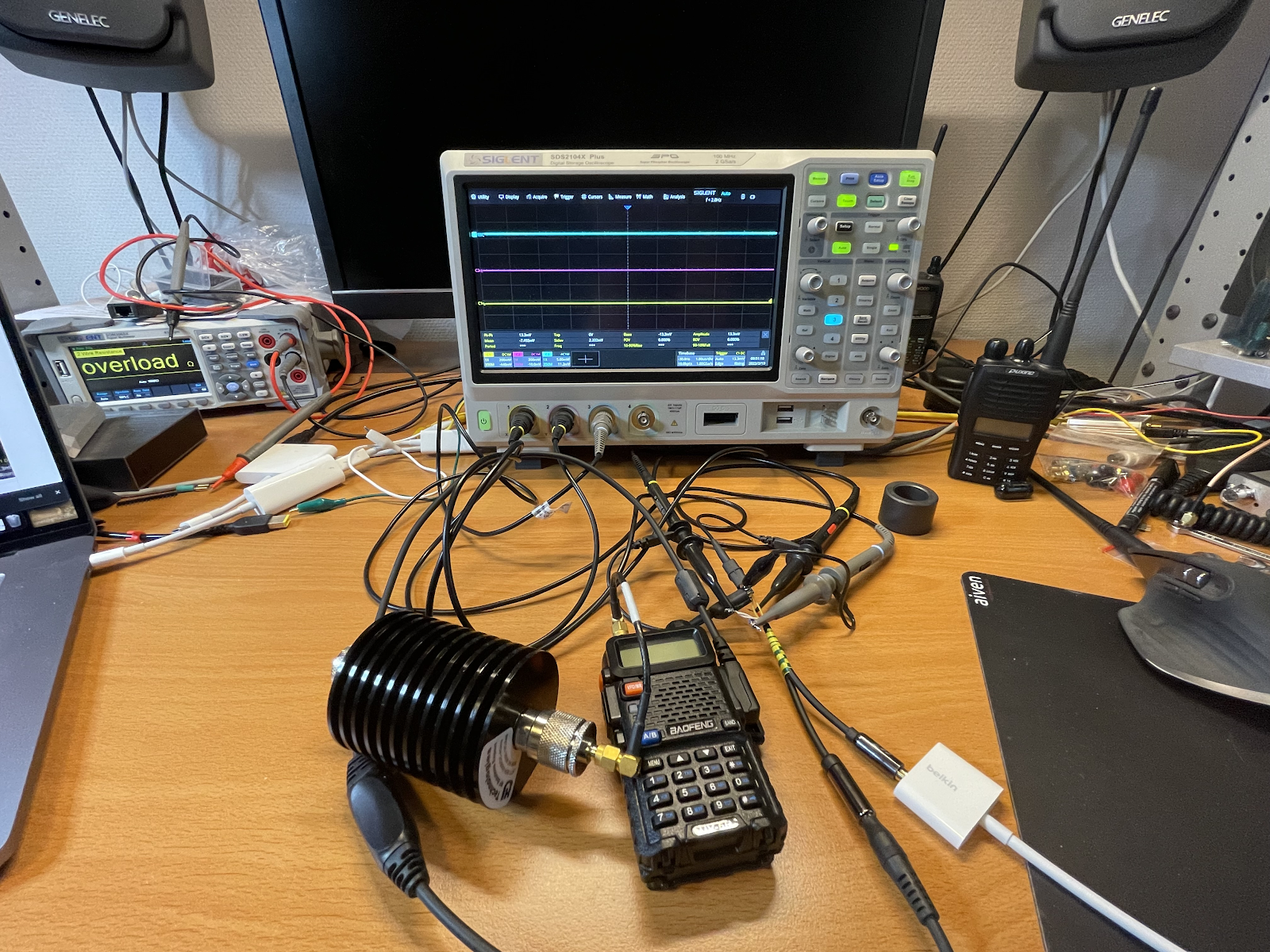

So a few weeks ago I finally ordered an UV-5R so that I could figure out what exactly is going on. I have a Siglent digital storage oscilloscope which allows me to look at the three audio channels between the iPhone and the radio: left & right headphone outputs, and the microphone input.

I also bought a 4-wire 1-meter TRRS extension cable from Ebay, cut it up and made a 10 cm extension cable with exposed wires where I could attach the oscilloscope. The JAMEGA Gmbh cable is awful - no shielding/braid at all on the cable, and they even sell a 10-meter version. Not good for low-level audio signals. But it'll work for 10 cm.

The first thing to test: plug in just the APRS-K1 cable, without a radio at the other end, and see that the inputs and outputs on the adapters and cables are fine, and the scope sees the right things. In this oscilloscope screen shot you see the L/R headphone outputs on the bottom, when a packet starts to go out. The blue line on top is the microphone line, which has a little high-frequency noise on it, as it is a low-level high-impedance wire which is not attached to anything on the other end.

Ok, that seems fine. The lines are quiet when the app is not transmitting a packet, and the waveform seems alright when it is transmitting. But what happens when I attach the APRS-K1 cable to a Baofeng without touching oscilloscope settings? This! All the time! It does not matter whether the Baofeng is powered on or off. Attach a Kenwood or a Puxing, this does not happen. There's a high-frequency signal on the cable, on all 3 pins.

If we zoom in to it on the frequency scale, we find a 473 kHz signal on all 3 wires. The frequency is drifting, so it's probably not sourced from a good oscillator / clock reference. Click on the image to see a higher-resolution screen shot - frequency counter is in the top right corner, level measurements on the panel below the plots. Pretty high-level, so if the Baofeng is powered on, VOX probably keys up the transmitter. The frequency is so high that you won't hear any audio being transmitted if you listen to the transmission with another radio. This is how it looks with the iPhone and a Belkin Lightning-3.5mm adapter.

With the Belkin lightning-3.5mm adapter, levels are 150 & 330 mV L/R, frequency is about 470 kHz.

If I turn on the Baofeng, the VOX triggers, transmitter goes on, and on the oscilloscope the only difference is that there's some high-frequency noise on wires, which can be expected as there is a 5W transmitter on the table. Even though it's transmitting to a dummy load instead of an antenna, this is to be expected.

This is the same thing, without the Belkin adapter, when attaching directly to the 3.5mm connector of my iPad - levels are lower at 20 & 110 mV L/R, frequency is 555 kHz. Baofeng is off, so no high-frequency noise from the transmitter.

Now, the interesting detail is that this only happens when the iPhone audio interface (A/D and D/A converter chip & amplifiers) are powered on and capturing audio. Could it be a feedback loop of some kind, between the A/D D/A converters and the circuitry on the Baofeng, with the A/D/A converter leaking the 500 kHz signal back and amplifying it? Or an oscillator is formed together with the Baofeng?

The iPhone has a power management system, where unnecessary components are powered off to conserve battery power. If any application (Voice Memos, Camera app in video capture mode, or the app) starts to record audio from the microphone input, the electronics of the A/D and D/A converters are powered on. This explains why the transmitter goes on when you start recording audio on the iPhone, or when you turn on the modem in the app. If you're wearing headphones attached to the iPhone and start audio playback from any app, or start recording in one of those apps, you can even hear a small "pop" sound in the headphones - it's the D/A converter waking up! It looks like this on the oscilloscope:

Because someone reported the same Baofeng + APRS-K1 cable setup works with APRSDroid on an Android phone, I tried it with my Nokia here. Yes, it does work, so there must be some difference in the audio circuitry or how it is used!

On Android, the A/D and D/A circuits seem to be powered separately. Georg DO1GL says that APRSDroid only outputs audio samples when it is transmitting a packet, and captures audio samples continuously for the receive to work. When looking at it on an oscilloscope, there is a 260 mV DC offset on one headphone audio channel when it's not transmitting. The DC offset goes away during transmit, and some time after the packet has ended, the DC offset comes back. There is also some additional noise on the output of the Android phone for some time after the packet has gone out, and the noise stops when the 260 mV DC offset appears. It would seem to me that the D/A is powered on only when audio goes out, and it can be powered off even when A/D conversion is taking place.

On the iPhone it seems to me that the D/A cannot be powered off independently. All audio-recording applications which I tried cause the D/A to be powered up and the strong 500 kHz signal to be generated if attached to the Baofeng. I tried all the APRS apps with DSP modems, and several other audio-capturing applications, and they all trigger the noise, if my Baofeng is attached.

Oh well. If it's feedback or oscillation, can we fix it by adding capacitance? Turns out we can!

I'm not much of an electrical engineer, but sometimes you can work around issues like this by just adding a bit of inductance or capacitance somewhere in a very experimental fashion, without applying too much science or math.

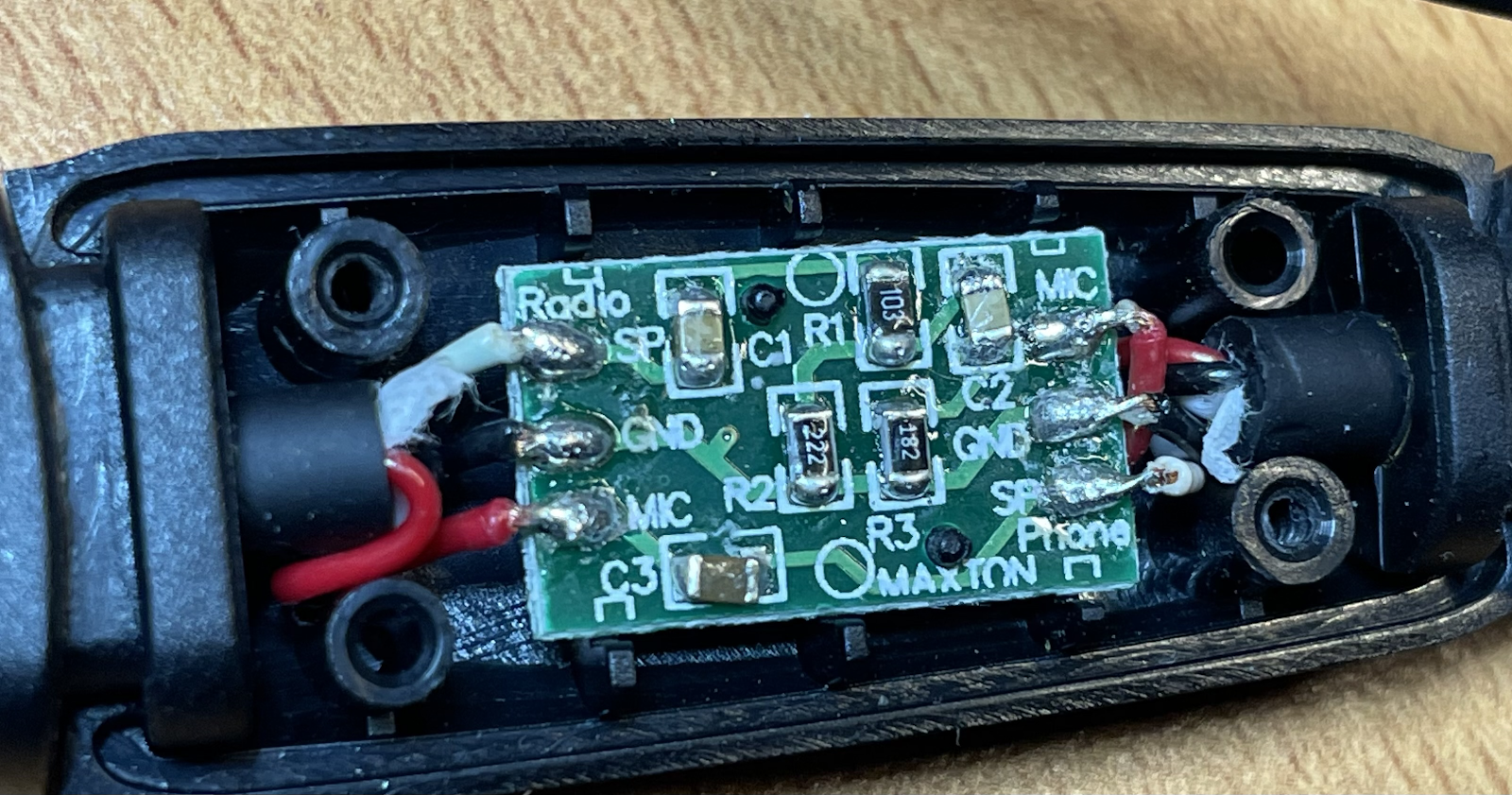

If you peel off the sticker on top of the APRS-K1 dongle, and open the two small Phillips screws, you'll find a small circuit board with a few capacitors and resistors. In this picture, the radio is attached to the left side, and the iPhone is attached to the right side. Red wire is the microphone wire on each side, white is the earphone wire, and black is ground. No isolation transformers.

The iPhone-to-radio-mic connection has just a single 100 nF capacitor for blocking DC, on the bottom of the circuit board. The radio speaker -> iPhone mic path, on the upper side of the board, from left to right, has a series capacitor (10 nF), a 2-resistor voltage divider (10 kOhm top, 2.2 kOhm bottom half), a second series capacitor (guessing 10 nF but couldn't measure), and a 1.8 kOhm resistor to ground, which tells the iPhone that a microphone is connected.

I checked with the oscilloscope that the 500 kHz signal was strongest on the bottom right corner, the wire labeled Phone SP, i.e. audio output from the phone. I grabbed a box of capacitors which were small enough to likely fit within the enclosure, tried the smallest and largest values (10 nF and 470 nF) by just pressing the capacitor wires on the SP and GND pins (black and white wire), and found that the largest one stopped the oscillation completely!

Most importantly, the Baofeng UV-5R is no longer stuck transmitting!

I then tried different values, and found that when attached to the iPad, where the 500 kHz signal levels were lower, a smaller value of 220 nF was enough. With the iPhone and the Belkin 3.5 mm adapter, only 470 nF cured it.

In hindsight, I could have tried putting the cap on the other pins as well - a lower value might have worked in another location. But this worked well enough and I didn't want to spend any more time on it, so I just soldered the capacitor in place, measured the results and closed the package!

This is how it looks with Baofeng UV-5R attached and powered on:

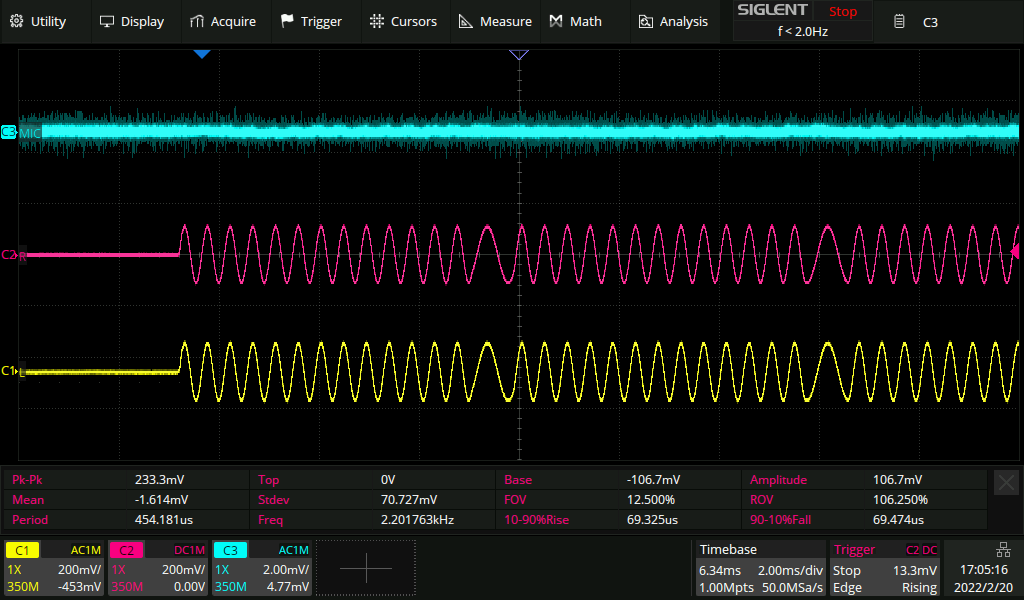

And this is how it looks when a packet is being transmitted. Note how the left and right audio output channels look the same, even though the parallel capacitance is present on one of those channels. Seems like it doesn't affect the transmitted audio too badly. Levels are different from the very first oscilloscope screen shot, because I've reduced the volume on the iPhone a bit.

Now, when I got it transmitting, I found out that the Baofeng is deaf. I have it attached to a 2*5/8 vertical antenna on the roof, which I use with other radios normally, and the transmissions go out just fine, but the squelch on the Baofeng does not open up when the nearby digipeaters transmit. On the other hand, squelch needs to be used, otherwise VOX will not key the transmitter at all, as VOX refuses to transmit when the squelch is open. I will not investigate that issue any further. :)

Thursday, July 22, 2021

Manual stopping of the iPhone app is unnecessary

Quite often someone says the app is starting up with the map showing Helsinki instead of the previous map view and position, and requests for an improvement to the app to save the last location on the map. Well, it turns out that the app certainly does save the last location, and in fact a fairly complete state of many other views, every time the app leaves the screen. It is saved to a state restoration file. It will return to that view, based on the restoration file, even if the operating system needs to free up memory for other apps and removes the app from memory. Even after the whole iPhone is rebooted.

I invite you to make a quick test:

  1. Position to your location (using the GPS centering button in the low right corner), or any other preferred position other than Helsinki.

  2. Leave the app: Go to home screen by pressing the home button or swiping up on a device without a home button. Do not go to the most-recently-used apps list and swipe the app up to manually kill it. Just don't.

    When the app goes out of view the app saves the current view and state to a small state restoration file. Within some 5 to 20 seconds iOS will completely suspend the app from running, unless beaconing is enabled or the software TNC is running and streaming audio. It will not run in background, unless there is a necessary background task, and the iOS operating system will not allow it to execute on the CPU.

    iOS also takes a screen shot from the app on the screen at this point, and saves it on persistent storage along with the restoration file (SSD/flash memory).

  3. Turn off the power of the iPhone (Settings -> General -> Shut down). Just to prove the point. This will, for sure, terminate all apps and remove them from memory.

  4. Turn on phone, and open up the app. At this point it is started again, and it reads the state restoration file.

  5. Observe the app magically returning to your last view. It can even return to most other views than map view after a complete reboot cycle. If you were tracking stations, it will continue to track the same stations at their current locations. If you were at the Help screen before the reboot, it'll go back to Help!

    To make the "cold start" of the app look faster, iOS will initially display the screen shot of the app it took in step 2, until the app is actually running and producing stuff on the screen. Even after a reboot, it looks very much like the app would have been running all the time. Sufficiently advanced technology looking like magic, again.

  6. If you manually terminate the app by swiping it up from the recent apps list, iOS will delete the state restoration file and the screen shot, so that the next startup of the app will happen from a clean state. It will not be able to go back to the previous view. On the next cold start the app will show a splash screen with the logo instead of the screen shot.
Quite a few people have a habit of killing apps and removing the state files by swiping them up from the recent apps list. This is probably because the misconception that those apps would be running on the CPU and consuming memory, and killing them would free up resources and save energy. This would be quite logical and is rooted in the history of traditional computers. The Internet has a thousand sites describing this procedure and claiming it'd do something good. Unfortunately not everything written on the Internet is true.

In fact the iPhone/iPad iOS operating system is already doing all that needs to be done! When an app goes out of view, iOS normally suspends all execution of the app after about 5 seconds. The suspended app will remain in RAM memory, though, until that memory is needed for something else. If there's enough memory and you return to that app soon without using a lot of memory in other apps, iOS can simply wake the app up from memory and it will resume running very quickly. It may remain suspended in memory for a very long time if you use it frequently without using a lot of memory in other apps. The power usage of that memory is very small, and the amount of power used does not change based on how much stuff is currently stored.

When the active app currently running in foreground (i.e. displayed on screen) needs more memory and there isn't any memory available, iOS will quietly free up memory by fully terminating some of the other apps which are currently suspended. When a terminated app is started again, it will need to initialise itself and read all resource files from the permanent flash storage. All of this takes much more CPU, wall-clock time and electrical energy than waking up from RAM memory.

If apps are unnecessarily terminated manually, they will use more energy when they are used again, as opposed to the situation where they are simply woken up from suspended state.

The attached image is from the Apple developer documentation. The app transitions through the Inactive states very quickly when moving between the Active state and other states.

That said, some apps can also run in the background, but only while performing one of a few specific tasks: playing music, VoIP calls (skype, whatsapp calls, other telephony), receiving GPS location updates for navigation, and a few other things. Each of these Background Modes need to be specifically permitted by an Apple employee during the app review process. For example, an app without actual user-visible mapping, navigation or location-related features are not allowed not obtain GPS positions in the background.

The app plays and records audio in the background when the software DSP modem is running. A red "recording" symbol will show up in the top of the screen whenever this happens in the background, and tapping that symbol will pop up the app doing it.

The app can also receive GPS location updates when beaconing is enabled and the app is given permission to obtain location data in the background. The "Allow location access" setting in iOS Privacy settings must be set to "Always". "While Using the App" setting only gives location data when the application is in the Active state, i.e. in the foreground, displayed on the screen. The app will naturally only request and receive location updates in the background when beaconing is enabled - requesting the frequent location updates uses a significant amount of energy since it powers up the GPS circuitry. The battery drains much faster if beaconing is enabled! If the software modem is not running, and beaconing is off, the app will be properly suspended within seconds after it leaves the screen.

After saying all of this: There are a few cases where manual termination of the app may be necessary. If the state restoration file is corrupted, and the app crashes on startup while reading it, manual termination will delete the file and work around the issue.

Once I had a bug in the app, where the user could navigate to a view which had no working "go back" button, and no way to switch tabs. The app was running but the user was stuck there on that single screen. To make things worse, state restoration worked perfectly, so even after a full iPhone reboot the user would be automatically brought back to this view! Again, a manual termination of the app removed the state restoration file and the app would again start up in the map view, and all was fine as long as the user did not go to that same view again.

A buggy app could accidentally also continue recording audio, or receiving GPS location coordinates, after it no longer needs them. But iOS will tell you if they do this, and you can then terminate them if necessary.

A former Apple Genius Bar technician, Scotty Loveless, wrote:
"By closing the app, you take the app out of the phone's RAM . While you think this may be what you want to do, it's not. When you open that same app again the next time you need it, your device has to load it back into memory all over again. All of that loading and unloading puts more stress on your device than just leaving it alone. Plus, iOS closes apps automatically as it needs more memory, so you're doing something your device is already doing for you. You are meant to be the user of your device, not the janitor.

The truth is, those apps in your multitasking menu are not running in the background at all: iOS freezes them where you last left the app so that it's ready to go if you go back. Unless you have enabled Background App Refresh, your apps are not allowed to run in the background unless they are playing music, using location services, recording audio, or the sneakiest of them all: checking for incoming VOIP calls , like Skype. All of these exceptions, besides the latter, will put an icon next to your battery icon to alert you it is running in the background."

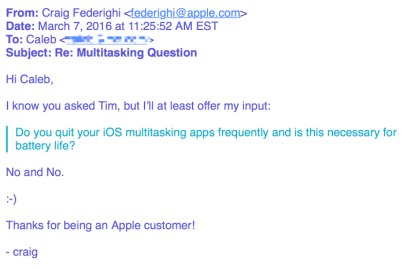

In 2016, an iPhone user decided to email Apple CEO, Tim Cook, and ask whether manual killing of apps would extend battery life. The reply came from Apple's senior VP of Software Engineering, Craig Federighi:

The recommendation of Kendall Baker is golden:
"As for the multitasking menu, think of that as a “Recently Used” section, as opposed to a “Currently Open” one."

Wednesday, May 13, 2020 iPhone / iPad 2.0 with Messaging, APRS-IS TX and DSP modem

Version 2.0 of the iPhone & iPad app is now out! A new major version is well deserved, since it comes with the following new major features:
  • APRS text messaging
  • APRS-IS position beaconing
  • A high-performance software DSP modem/TNC (1200 bit/s only at this time)
  • Longer time ranges in map and graph views, arbitrary date/time ranges on map
  • Up to 10 station profiles in Beacon
The features listed above are enabled by purchasing the Extra Features subscription with an in-app payment.

There's a 1-week free trial included in the1-year subscription, but remember to cancel at least 24 hours before the end of the trial, as Apple will charge the next period up to 24 hours before each subscription term ends! They do this to ensure continuous service when the period ends and switches to the next one.

This is a big release for me, since I have literally worked on these features for a few years. It's been a bit slow, but I finally managed to put together a set of major features which should be well worth the subscription price. The story and reasoning behind the subscription model is throughly described in a previous blog post so I won't dive into it now.

In addition to the Extra Features, there are a few new things which are available to all users:
  • Beaconing now has a slider control to adjust the maximum interval between beacon transmissions between 5 minutes and 60 minutes. Previous versions had this fixed to 25 minutes. If the minimum and maximum sliders are set to the same value, it will beacon with quite exactly that interval. If they're set to different intervals, the app will use an algorithm similar to smart beaconing, as before - move faster, it will transmit more often. If you don't move, the maximum interval is used.
  • The map view now has a button to adjust the time range.
And, of course, a few bug fixes here and there.

Messaging is implemented in a very iPhone-like way. Received ACKs are shown as a delivery status for each sent message. Transmitting works either via a TNC (Mobilinkd TNC3 or the new built-in DSP modem), or via the Internet ( / APRS-IS). Received messages come in via both paths transparently, and it indicates whether each message got in via TNC or Net, or both. Messages received from the APRS-IS are delivered to the iPhone using a Push Notification, so you'll get a notification just like you'd get from an SMS or iMessage, even if the app would not be running at the time. If you have an iWatch it'll also show the notification with message contents!

The demodulator of the TNC is based on the excellent Direwolf modem by John Langner, who kindly permitted me to redistribute his code under the BSD license. I've just reorganised the code quite a lot, and optimised it for less CPU consumption when compiled for the iPhone. It decodes really well - I've benchmarked it with the WA8LMF TNC Test CD and it's in the top category by the number of decoded packets, when compared to the benchmark results published for other TNCs by John in the Direwolf documentation. I'll leave comparative tests and public benchmarking to other neutral parties!

The modulator of the TNC is partially derived from javAX25 by Sivan Toledo, and its C port by Alejandro Santos, who have also kindly permitted me to redistribute under the BSD license.

I still do recommend the Mobilinkd TNC3, since it has an actual PTT circuit to key the transmitter, and it talks with the iDevice over BLE - no wires needed to attach the iPhone. With an audio / DSP modem you'll have to use VOX to key the transmitter, and the transmitter will start up slowly (requiring a large TX delay setting) and will turn off slowly as well (eating precious channel time).

Here's a little video showing packets being decoded right off the speaker. Once I get an iGate implemented I'll have to run the iGate for a few days like this, just for the silliness value.

Sunday, March 22, 2020 supports Kenneth's Proposed Telemetry Format

Telemetry is the collection of measurements or other data at remote or inaccessible points and their automatic transmission to receiving equipment for monitoring. The word is derived from the Greek roots tele, "remote", and metron, "measure". (Wikipedia)
APRS telemetry can be used to transmit things like voltages, temperatures, and channel traffic status from anywhere to everyone on the APRS network.

Today I've changed how deals with telemetry values. The change is backwards compatible, but if you start to play with this on the transmitting side, strict classic implementations may not accept your data any more. Please read the whole article if you're going to make use of this.

The APRS protocol is documented in APRS101.PDF. Chapter 13 specifies how telemetry can be transmitted. Analog values are defined to be 8-bit integers:
There are five 8-bit unsigned analog data values (expressed as 3-digit decimal numbers in the range 000–255), followed by a single 8-bit digital data value (expressed as 8 bytes, each containing 1 or 0).
In year 2020 you may find this a little bit restrictive, as a lot of measurements are done at slightly higher resolution these days. Even the popular DS18B20 temperature sensor does 12 bits. Oh, and it can do negative temperatures too.

Values that are negative, or larger than 255, or decimal values which fit within 8 bits, are supposed to be scaled to fit within the 0...255 range. A separate EQNS Equation Coefficients packet should be sent to provide coefficients a, b and c, which are used to scale the transmitted value v back to the original measured value X using the formula:
X = a * v2 + b * v + c
So, you could scale temperatures between -40 and +60 Celsius to a range of 0..100 by adding 40, and then transmit an EQNS packet saying a = 0, b = 1, c = -40, and the recipient could then figure that a transmitted value of 60 would be 0*60^2 + 1*60 + -40 = 20°C.

But if you follow the spec, there's no way to transmit a 80-degree temperature range (-40°C to +40°C) with a 0.1°C resolution. It could be scaled to 0..800 range, but it'd overflow the 8-bit upper limit of 255.

One of my in-house temperature & humidity sensors.
ESP8266 on wifi + DHT22 compatible AM2302 sensor.
Not APRS though, MQTT to Graphite & Grafana.
Needless to say, a lot of people found this unnecessarily complicated and limited, and figured they could just ignore the slightly archaic specification and simply transmit and accept values larger than 255, decimal values, and negative values. When I originally implemented telemetry decoding for in 2008, I already found a lot of this happening.

I figured there must be other implementations that are more relaxed than APRS101.PDF and just went along, picking a backwards compatible but slightly more relaxed schema using the Stetson-Harrison method, without really documenting the situation. So, until today, has been storing an unsigned fixed-point decimal number which can represent values between 0 and 999999,99. Two decimals. No negative values. It has been stored as a 32-bit data unit in the database. I admit it's been a bit silly - I didn't go all in and accept negative values, and the fixed point is a bit... fixed.

Kenneth Finnegan (MS in APRS, the highest academic degree anyone has on the subject) has written a some good notes on how APRS telemetry is actually formatted in the wild here:

Kenneth also outlines a Proposed Telemetry Format, where a telemetry packet can be made shorter if there's less than 5 values to be transmitted, and where large, negative or floating-point values can be transmitted as-is without scaling them to the classic nintendo 8-bit 0...255 range specified in APRS101.PDF. I think the proposal is good, and it also matches the reality of what is already being done widely by many telemetry transmitters.

The proposed format is backwards compatible in a way that allows decoders accepting the new format to also accept the old format without special handling. Old and pedantic decoders can not accept the new format when either the shorter format (with less values) or decimal/negative/large values are sent. Luckily it's easy to upgrade the old decoders to accept the new format, and even the smallest microcontrollers today are easily programmed to handle floating point values like this.

As of today, implements Kenneth's Proposed Telemetry Format.

  • Analog values are stored in signed IEEE single precision (32-bit) base-2 floating point format. Kenneth does not specify a resolution or maximum value, so I just picked the single precision format, since it doesn't actually increase my disk storage requirements. As the wikipedia article says, the single precision float can store a maximum value of 3.4028235 × 1038. "All integers with 7 or fewer decimal digits, and any 2n for a whole number −149 ≤ n ≤ 127, can be converted exactly into an IEEE 754 single-precision floating-point value."
  • The decoder only accepts values between -2147483648 and 2147483647.
  • Since it is a floating point value, if you send very large values, the resolution starts to show up in the less significant digits. But it is still exactly precise in the -9999999 to 9999999 range, and certainly in the 0...255 range too.
  • Only three decimals are printed on the telemetry pages for now - if you transmit 0.0005 it'll be rounded up to 0.001. This is because the values calculated with EQNS coefficients often have a lot of decimals, and for most data it does not make sense to print it out with more than 1, 2 or 3 decimals. But I'm guessing there isn't much data that would have meaningful 4 decimals.

A few examples of packets that can now be accepted

Short telemetry, just one value of 42:
Slightly longer, with three values, first one being negative, second one being large, third one having decimals:
Just four bits of digital telemetry:


Older decoders which read APRS101.PDF to the letter will not accept these packets. I'm hoping they will be relaxed to accept the proposed format in the future. At this point you'll need to test if your intended recipients parse them.

javAPRSSrvr will pass these packets through, but if a client sets up a "t/t" filter to request all packets of the Telemetry type, it will currently only accept packets which strictly match the APRS101.PDF format. If there is a decimal point in a value, a negative sign, or an analog integer value exceeding 255, the client will not get the packet. I'm hoping Pete will relax this requirement in the future.

aprsc packet type filters (like "t/t") only look at the packet type (first few bytes usually). It does not care if the remaining packet matches some format or not, and it allows upgrading the format without changes in server code.

Final note to people writing APRS decoders

If you implement the Proposed Format, please let me or Kenneth know, or make a github pull request to Kenneth's document, so that we can have a list of software supporting the new format. Thanks!

Saturday, February 1, 2020

How APRS paths work

The APRS packet path is used to control the distribution and retransmission of a packet in the APRS network.

Every now and then someone asks how paths actually work. Having spent quite some time staring at packets that have been digipeated, and decoding them at my little web site, I suspect I might have begun to understand it, so here goes. I'll explain it the long way and begin with a packet without a path, continue with the traditional AX.25 digipeating path, and then go to the APRS world.

No path

Let's assume my call is N0CALL, and I have a generic APRS device which uses the generic APRS tocall (destination callsign) of APRS. The packet, without any digipeaters or path, in the usual text format, as used on the APRS-IS, would look like:


Some of my APRS gear on top of my old bass gear, from left:
Mobilinkd TNC3 for iPhone (prototype unit), Kenwood
TH-D72 (digipeats), an unassembled TNC-X (can digipeat with
a daughtercard added), Argent Data Systems Tracker2 OT2m
(digipeats), Coastal Chipworks TNC-pi on top of a Raspberry
Pi (digipeats with aprx), Byonics TinTrak4 (digipeats),
Kenwood TH-D74 (can digipeat). Moomin for size reference
only. Hartke Kickback 15" 120W. If your APRS hardware
is not shown here yet, my address is on :)
There are two separating characters: the '>' separates the source and destination callsigns, and the ':' separates the packet header from the actual data being transmitted (the APRS formatted position, in this case). A packet like this would not be repeated through any digipeaters, but it could still be directly heard, picked up by an iGate and passed to the APRS-IS on the Internet. Sometimes you might want to do this and configure your transmitter with an empty path.

Classic AX.25 digipeating

The digipeater path may then optionally appear after the destination callsign. Here's a packet that I might transmit, which requests digipeating via two specific digipeaters, in a particular, specified order:


Here, the digipeater path is OH7RDA,OH7RDB - the packet should be digipeated by OH7RDA and then OH7RDB. This is how classic AX.25 packet radio digipeating works. APRS is transmitted using AX.25 packet radio packets, so they will follow the old AX.25 rules too. You can certainly do this and most APRS digipeaters will digipeat your packet if you just put the callsign in the path.

When OH7RDA retransmits the packet, it will flip the "has been repeated" bit on for that callsign. It really is a single bit called the "H bit". The packet, in text format, will look like this – note the '*' which indicates the "has been repeated by this digipeater" bit:


Each digipeater will look for the first digipeater callsign in the path which has not been used yet (i.e. the "has been repeated" bit is not on - there's no "*" in there), and then figure out based on that if it should be retransmitted. So, after OH7RDA has retransmitted the packet, and OH7RDB has heard the above packet with OH7RDA*,OH7RDB in it, it will go "oh that's my callsign, I'll retransmit". The resulting packet transmitted by OH7RDB will have OH7RDA*,OH7RDB* as the path! Note that OH7RDB will not retransmit the original packet before OH7RDA has done his part.

To add confusion, and to save a few bytes, usually only the last "*" is usually printed, although the "has been repeated" bit is set on all previous digipeater calls. OH7RDA,OH7RDB,OH7RDC* actually means OH7RDA*,OH7RDB*,OH7RDC* !

Aliases of digipeaters, classic AX.25 packet approach

Digipeaters can be also configured to respond to alias callsigns in addition to their own call. For example, OH7RDA could be configured to repeat a packet which requests digipeating by ALIAS. It may then do one of two things: It can either substitute ALIAS with it's own callsign, or prepend it's own callsign before ALIAS. This varies by digipeater software and its configuration.


When retransmitted by OH7RDA, will become one of:


The benefit of the second format (digi call prepended) is that, upon receiving such a packet, we know that the originator used ALIAS as the path.

In the classic/old APRS digipeating world, people used aliases like WIDE to ask for any digipeaters to digipeat. Currently, this method is used to digipeat through satellites and the ISS - just use a simple alias of ARISS as the path and it will be digipeated through the RS0ISS digipeater on the ISS or any of the other APRS-supporting satellites on 145.825 MHz! Yes, this means the PATH setting should be just "ARISS". Do not put any of the WIDE or RS0ISS stuff in there, it won't help.

WIDEn-N paths on APRS

This is where it gets interesting and more specific to APRS, as these paths only work on APRS digipeaters. A WIDEn-N path has two integers, n and N. WIDE3-1 would have n of 3, and N of 1. The first integer theoretically means "I'd like to have this packet to be digipeated by this many digipeater hops" (3 in the example of WIDE3-1). The second integer means "there's this many hops left before digipeating stops". When it becomes 0, it won't be digipeated any more, and the "has been repeated" bit will be set (a "*" will appear).

A packet with a path of WIDE3-3, after first retransmission will become WIDE3-2, and then WIDE3-1, and after the third retransmission it'll be WIDE3*. The SSID of 0 is not printed – it's really WIDE3-0 under the hood of the packet but the -0 will not be shown.

The digipeaters supporting this kind of alias usually also prepend their callsigns (all the good ones do, the bad ones don't). And the packet will be often picked up by many digipeaters! So you may see something like this, when both OH7RDA and OH7RDB hear N0CALL, and OH7RDC hears OH7RDB:


You can also send a packet which originally has a path of WIDE2-1, and it'll be digipeated by digipeaters which are configured to respond to the WIDE2 alias - but only once, since the "remaining hops" number is 1 to begin with. If three digipeaters can hear you, this would result in:


A packet of WIDE2-2 is often retransmitted by much more than than 2 digipeaters, since it will be digipeated twice to each direction. Each high-level digipeater in a tower will be often heard by a few digipeaters which are actually quite far away. This is how a WIDE3-3 path might be distributed through a whole country, and a bit to the neighbouring countries as well (rough example but not far from the truth):

This is why we don't usually use paths with more than 2 hops on APRS, and practically never more than 3 (except in some specific cases in rural areas with quiet channels having little traffic). A packet like this can light up the whole APRS network in almost the whole country (or a few states, for you in the larger nations). If a lot of people did this, the channel would become too congested and APRS would stop working as everyone would be transmitting on top of each other. It has happened and we've learned it the hard way.

Fill-in digipeaters

In some areas people set up low-level "fill-in" digipeaters at their homes. They are only configured to respond to the WIDE1 alias, but not WIDE2. Digipeaters higher up at towers and such, serving a wide area, are configured to respond to both WIDE1 and WIDE2 aliases.

The idea is that the fill-in WIDE1 digipeater may well hear packets from nearby transmitters, which might be missed by the higher-up digipeater – due to distance, or because it hears a lot of stations and gets a lot of collisions, or because there are "urban canyon" obstructions. The wide-area-coverage WIDE2 digipeater will be heard by everyone, and there's no need for the fill-in WIDE1 digipeaters to retransmit packets which have already been transmitted by it!

This is accomplished by transmitting a packet with a WIDE1-1,WIDE2-1 path. This is the usual recommended default APRS path, as you might have noticed. It would be first digipeated by any digipeater (fill-in or wide-area), and then by a wide-area WIDE2 digipeater. But only for a total range of 2 hops! This is how it might look, if you could receive the original packet and all the digipeated packets - N1FILL is the fill-in home digipeater, OH7RDA and OH7RDB are higher-up digipeaters which can hear N1FILL but not N0CALL:


In reality, many of these fill-in digipeaters are old and dumb TNCs, and can not do callsign prepending. Instead, they just do callsign substitution and replace WIDE1-1 with their own callsign, like this:


Alternatively, if N1FILL would not receive this packet, but just the higher-up digipeaters directly, then it might go a bit further. OH7RDA heard N0CALL, and subsequently OH6RDA and OH8RDA hear OH7RDA:


To send a packet for one hop of digipeating you can choose to use either WIDE1-1 or WIDE2-1. With WIDE1-1 you may have it digipeated through fill-ins and wide-area digis, a WIDE2-1 should only trigger the wide-area ones.

There are also some buggy digipeaters out there which do not add their callsign at all - they just retransmit, and decrement the hop counter of a path element (WIDE2-2 to WIDE2-1 and so on). These are particularly annoying when trying to figure out what happened to a packet.

What about the ,qAR,IGATECALL stuff happening on the APRS-IS?

The APRS-IS servers on the Internet, or alternatively, the iGate itself, append something called the q construct to the packet. After the q construct you'll find the callsign of the iGate which received the packet from a radio and passed it to the Internet:


The q construct does not appear on the radio side - it is only used for tagging additional information to it on the Internet.

Limits and policies

Digipeaters often have policies or filters configured, to prevent digipeating of outright silly paths like WIDE6-6, or paths with a big combined hop length ("WIDE1-1,WIDE2-2,WIDE3-3,WIDE3-3" for a total of 9 hops), or paths where the second integer is larger than the first one (WIDE1-7). Paths like this are considered abusive and cause excess congestion to the APRS network.

Having said that, I think it's alright to have some fun sometimes!

One fun trick is to send a packet, manually, by hand, towards the west, have it travel around the country and then come back to you from the east. You can accomplish this by drawing a map of live digipeaters ( can do this for you), and then putting in the callsigns of the digipeaters in the path (up to 8 digis may work): DIGI1,DIGI2,DIGI3,DIGI4,DIGI5. Even though they are many elements in the path, it won't consume much more radio channel time than what a WIDE1-1,WIDE2-2 packet would. Just don't do this with the regularly-beaconing APRS tracker in your car, it'd be silly.
